Standard Features
Fuel Level Viewing Windows
Ventilation Panels
Access Panels For Cleaning & Maintenance

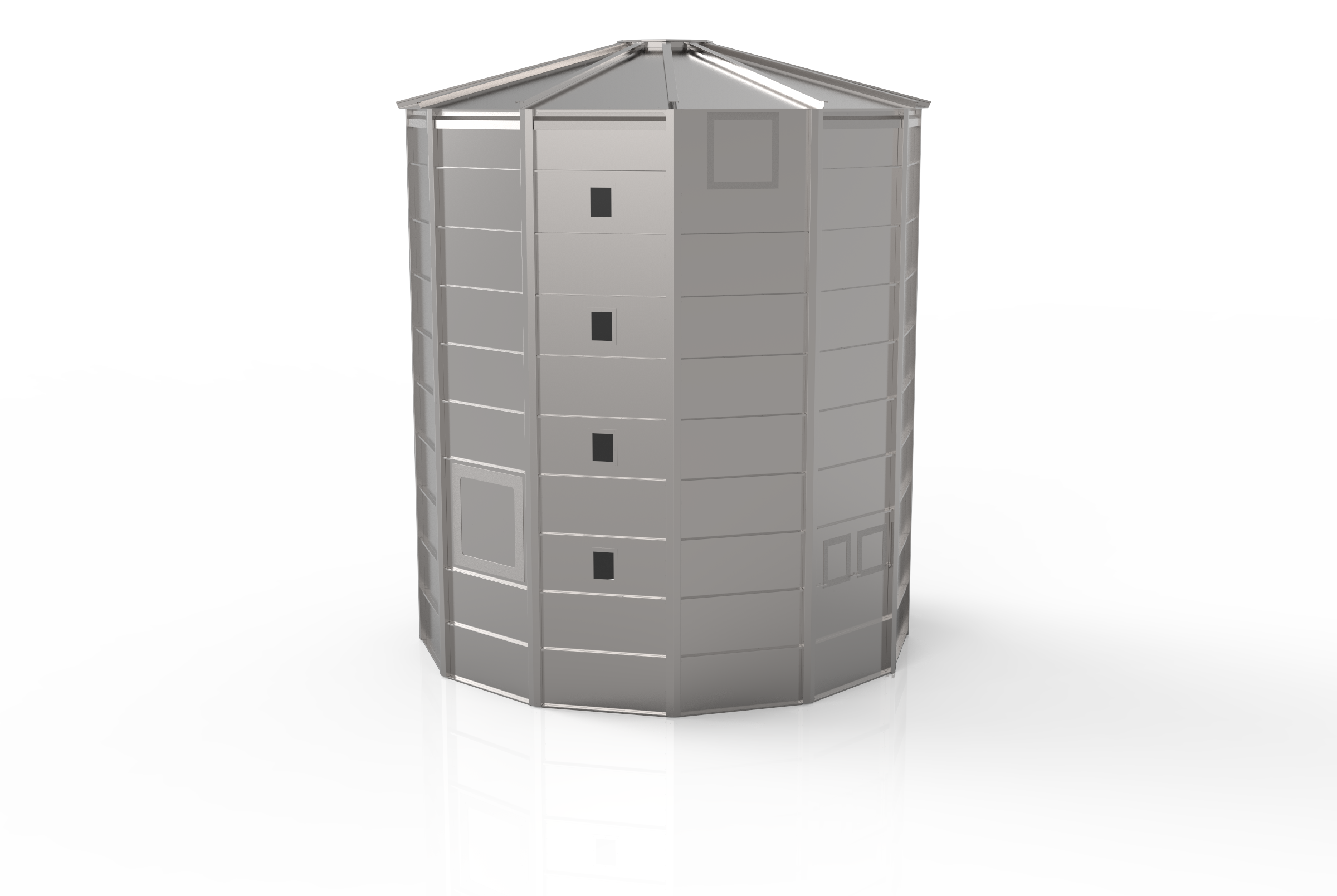

Cylindrical wood chip / pellet silos 40m3 – 160m3 capacity
Our standard 10, 12 and 16 sided wood chip silos are manufactured from galvanised steel and provide a perfect outdoor storage environment for bulky wood chip fuel. They can also be modified for use with wood pellet fuel by inserting a conical base at the bottom. Their modular design allows them to be delivered to site flat packed for quick and easy assembly. Standard diameters of between 3-6m are available incorporating capacities from 40-160m3. Special ventilation panels help prevent condensation and maintain the moisture content of the fuel.
click drop down menus below to get a silo quotation
Code |
Description |
Diameter |
Height |
Useable Volume |
Actual Volume |
No. of Sides |
Data Sheet |
Quote |
|---|---|---|---|---|---|---|---|---|
| C4040 | 40m3 Cylindriacal Wood Chip Silo | 4.0 m | 4.51 m | 43.21 m3 | 53.30 m3 | 12 | DOWNLOAD | |
| C5040 | 50m3 Clindrical Wood Chip Silo | 4.0 m | 5.37 m | 54.01 m3 | 64.11 m3 | 12 | DOWNLOAD | |
| C6040 | 60m3 Cylindrical Wood Chip Silo | 4.0 m | 6.23 m | 64.81 m3 | 74.91 m3 | 12 | DOWNLOAD | |
| C7040 | 70m3 Cylindrical Wood Chip Silo | 4.0 m | 6.66 m | 70.21 m3 | 80.31 m3 | 12 | DOWNLOAD |
Code |
Description |
Diameter |
Height |
Useable Volume |
Actual Volume |
No. of Sides |
Data Sheet |
Quote |
|---|---|---|---|---|---|---|---|---|
| C5045 | 50m3 Cylindrical Wood Chip Silo | 4.5 m | 4.65 m | 54.68 m3 | 69.06 m3 | 12 | DOWNLOAD | |
| C6045 | 60m3 Cylindrical Wood Chip Silo | 4.5 m | 5.08 m | 61.52 m3 | 75.90 m3 | 12 | DOWNLOAD | |
| C7045 | 70m3 Cylindrical Wood Chip Silo | 4.5 m | 5.94 m | 75.19 m3 | 89.57 m3 | 12 | DOWNLOAD | |
| C8045 | 80m3 Cylindrical Wood Chip Silo | 4.5 m | 6.37 m | 82.02 m3 | 96.40 m3 | 12 | DOWNLOAD | |
| C9045 | 90m3 Cylindrical Wood Chip Silo | 4.5 m | 7.23 m | 95.70 m3 | 110.07 m3 | 12 | DOWNLOAD |
Code |
Description |
Diameter |
Height |
Useable Volume |
Actual Volume |
No. of Sides |
Data Sheet |
Quote |
|---|---|---|---|---|---|---|---|---|
| C6050 | 60m3 | 5.0 m | 4.35 m | 50.07 m3 | 78.79 m3 | 12 | DOWNLOAD | |
| C7050 | 70m3 | 5.0 m | 5.21 m | 75.95 m3 | 95.67 m3 | 12 | DOWNLOAD | |
| C8050 | 80m3 | 5.0 m | 5.64 m | 84.39 m3 | 104.11 m3 | 12 | DOWNLOAD | |
| C9050 | 90m3 | 5.0 m | 6.07 m | 92.83 m3 | 112.55 m3 | 12 | DOWNLOAD | |
| C10050 | 100m3 | 5.0 m | 6.50 m | 101.27 m3 | 120.99 m3 | 12 | DOWNLOAD | |
| C11050 | 110m3 | 5.0 m | 6.93 m | 109.70 m3 | 129.43 m3 | 12 | DOWNLOAD |
Code |
Description |
Diameter |
Height |
Useable Volume |
Actual Volume |
No. of Sides |
Data Sheet |
Quote |
|---|---|---|---|---|---|---|---|---|
| C8055 | 80m3 Cylindrical Wood Chip Silos | 5.5 m | 4.91 m | 81.69 m3 | 107.94 m3 | 16 | DOWNLOAD | |
| C9055 | 90m3 Cylindrical Wood Chip Silos | 5.5 m | 5.34 m | 91.90 m3 | 118.15 m3 | 16 | DOWNLOAD | |
| C10055 | 100m3 Cylindrical Wood Chip Silos | 5.5 m | 5.77 m | 102.11 m3 | 128.36 m3 | 16 | DOWNLOAD | |
| C11055 | 110m3 Cylindrical Wood Chip Silos | 5.5 m | 6.20 m | 112.32 m3 | 138.57 m3 | 16 | DOWNLOAD | |
| C12055 | 120m3 Cylindrical Wood Chip Silos | 5.5 m | 6.63 m | 122.53 m3 | 148.78 m3 | 16 | DOWNLOAD | |
| C13055 | 130m3 Cylindrical Wood Chip Silos | 5.5 m | 7.06 m | 132.74 m3 | 158.99 m3 | 16 | DOWNLOAD |
Code |
Description |
Diameter |
Height |
Useable Volume |
Actual Volume |
No. of Sides |
Data Sheet |
Quote |
|---|---|---|---|---|---|---|---|---|
| C9060 | 90m3 Cylindrical Wood Chip Silo | 6.0 m | 5.05 m | 97.21 m3 | 131.30 m3 | 16 | DOWNLOAD | |
| C11060 | 110m3 Cylindrical Wood Chip Silo | 6.0 m | 5.48 m | 109.37 m3 | 143.45 m3 | 16 | DOWNLOAD | |
| C12060 | 120m3 Cylindrical Wood Chip Silo | 6.0 m | 5.91 m | 121.52 m3 | 155.60 m3 | 16 | DOWNLOAD | |
| C13060 | 130m3 Cylindrical Wood Chip Silo | 6.0 m | 6.34 m | 133.67 m3 | 167.75 m3 | 16 | DOWNLOAD | |
| C14060 | 140m3 Cylindrical Wood Chip Silo | 6.0 m | 6.77 m | 145.82 m3 | 179.90 m3 | 16 | DOWNLOAD | |
| C16060 | 160m3 Cylindrical Wood Chip Silo | 6.0 m | 7.20 m | 157.97 m3 | 192.05 m3 | 16 | DOWNLOAD |
Optional Extras

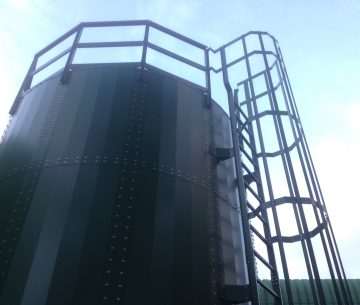

Access Ladder – Optional Extra
For easy and safe access to your silo systems, we offer this additional access ladder. This access ladder is made to order and can be manufactured to your request. The ladders offers an added value of safety and will help for future maintenance and inspection in the future. If you would be interested in purchasing […]

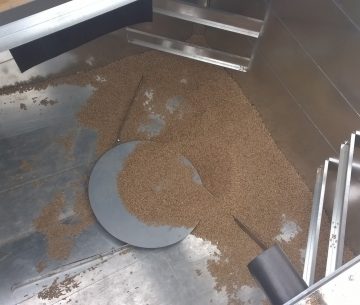

Steel Silo Base
A steel silo base can be manufactured to suit the agitator extraction system or a conical silo base can be manufactured to convert the silo to be used with wood pellets.
Powder Coating
Silo can be powder coated to RAL colour of choice in order to make it blend in to its surroundings more naturally.
